特征与用途Features:
·金属外壳封装、方形、极性电容器。
Metal case encapsulation, Rectangle, Heteropolarity;
·产品是钽电解电容器和电化学电容器组成的混合电容器，体积小、存储能量大。
Commingled by Electrolytic Tantalum Capacitor and Electrochemical Capacitor, Small in size, Super Capacitance.; This series products is firstly witnessed at home;
·电性能优良稳定、可靠性高、寿命长、单位体积内能量密度大。
Stable in Electrical Performances, High Reliability, Long life-span, Maximum in the Density of Capacitance and Energy;
在能量转换电路、功率脉冲电路中可以起到电池作用，为电路提供贮能、断电延时等功能。
Built-in as battery in Energy-conversed-circuit &Power-pulsed-circuit, functioned as filtering, storage energy, blackout& delaying;
·订货格式：THC5-50V8000μF -M：100只
Ordering Information: THC5-50V8000μF -M：100 pcs
主要技术性能Technical Performances:
使用温度范围：-55℃～+125℃（+125℃施加类别电压使用）
Operating Temperature Range: -55℃～+125℃(when ＞+125℃， with rated voltage derating)
储存温度范围：-62℃～+130℃
Storage Temperature Range: -62℃～+130℃
容量允许偏差： M级：±20%
Capacitance Tolerance: M:±20%;
电性能：见表1
Electrical Performances: See tables

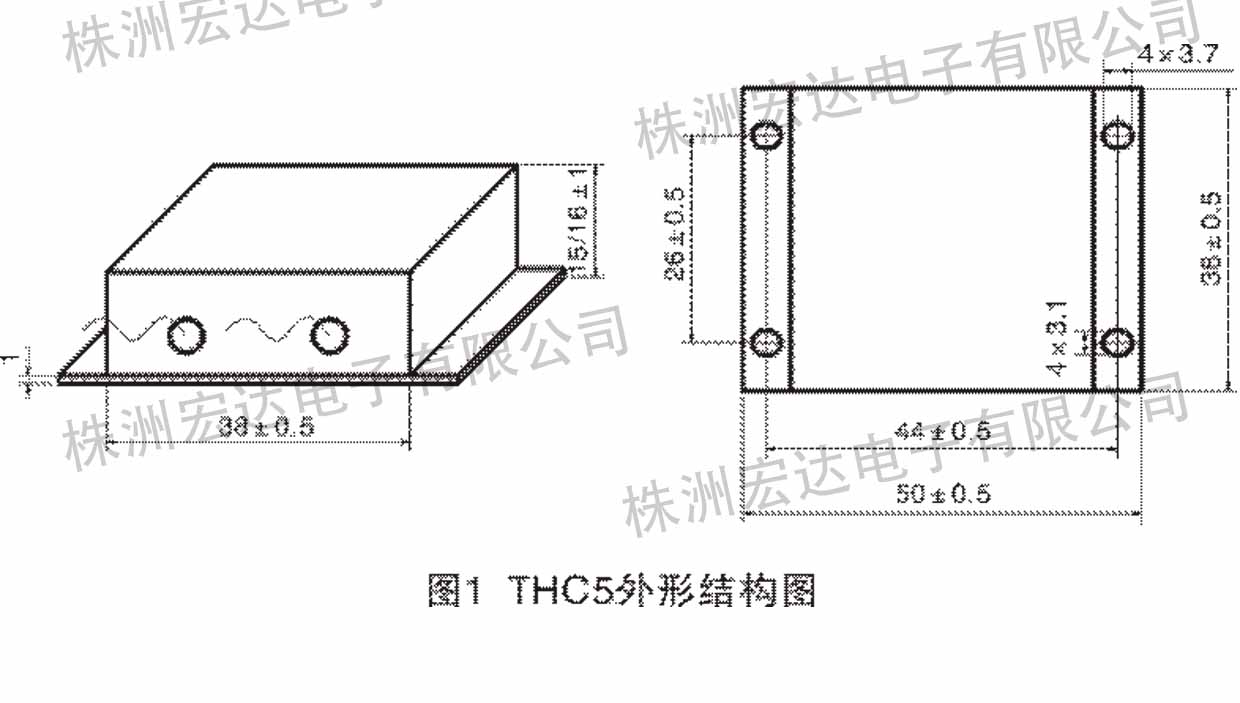

外型尺寸：见图1
Dimensions: See table1
表1 THC5型高能钽混合电容器性能参数 外形结构和安装尺寸见图1
Table1 Electrical Characteristics:
|
额定
电压
(V) Rated Voltage
(V)
|
类别
电压
(V)
Category Voltage
(V)
|
浪涌
|
