特征与用途Features:

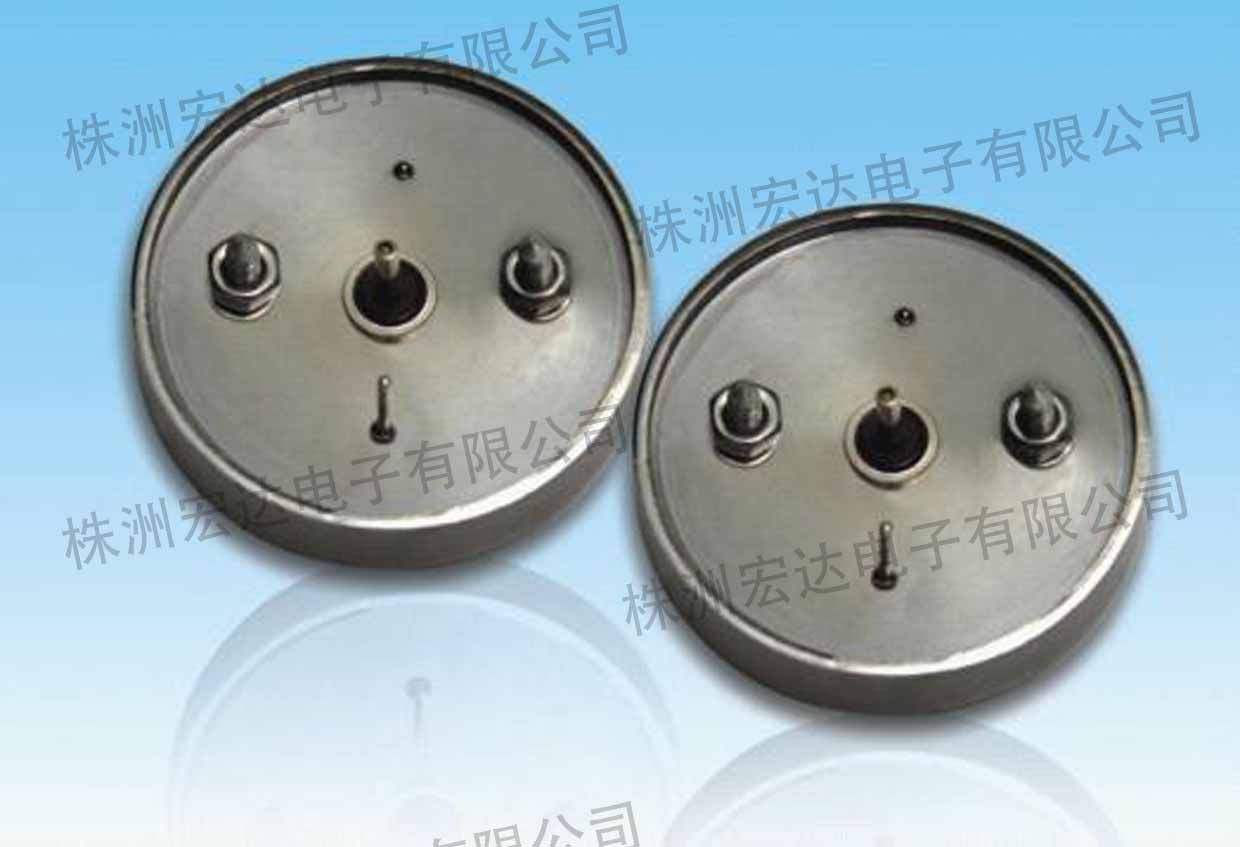

·全钽外壳、气密封、圆柱形、同向引出、有极性、带螺钉结构、便于安装。
Tantalum case, Hermetically Sealed, Cylindrical，Axial-lead，Heteropolarity, With Screws for installation；
·产品是钽电解电容器和电化学电容器组成的混合电容器，体积小、储存能量大。
Commingled by Electrolytic Tantalum Capacitor and Electrochemical
Capacitor, Small in size, Super Capacitance; This series products is firstly witnessed at home;
·电性能优良稳定、可靠性高、寿命长、单位体积内能量密度大。
Stable in Electrical Performances, High Reliability, Long life-span, Maximum in the
Density of Capacitance and Energy;
·在能量转换电路、功率脉冲电路中可以起电池作用，为电路提供贮能、断电延时等功能。
Built-in as battery in Energy-conversed-circuit &Power-pulsed-circuit, functioned as filtering,
storage energy, blackout& delaying;
·订货格式：THC1W-50V8000μF-M：100只（A）
Ordering Information: THC1W-50V8000μF-M：100pcs（A）
主要技术性能Technical Performances:
使用温度范围：-55℃~+125℃（+125℃时，施加类别电压使用）
Operating Temperature Range: -55℃~+125℃(when ＞+125℃， with rated voltage derating)
存储环境温度：-62℃~+130℃
Storage Temperature Range: -62℃～+130℃
电容量允差：Q级：-10%~+30%， M级：±20%
Capacitance Tolerance: Q: -10%~+30%；M:±20%;
电性能：见表
Performances: See tables
THC1W型Φ36×8外形结构图
Dimension of THC1WSeries Φ36×8(UP)
THC1W型Φ36×8安装固定架图 Electrical
Fixing Frame of THC1WSeries Φ368(Down)
图1 外形结构及安装固定架
Figure1 Dimensions and Fixing Frame
表 额定电压、类别电压、浪涌电压、标称电容量和主要特性
Table1 Electrical Characteristics:
