特征与用途Features:

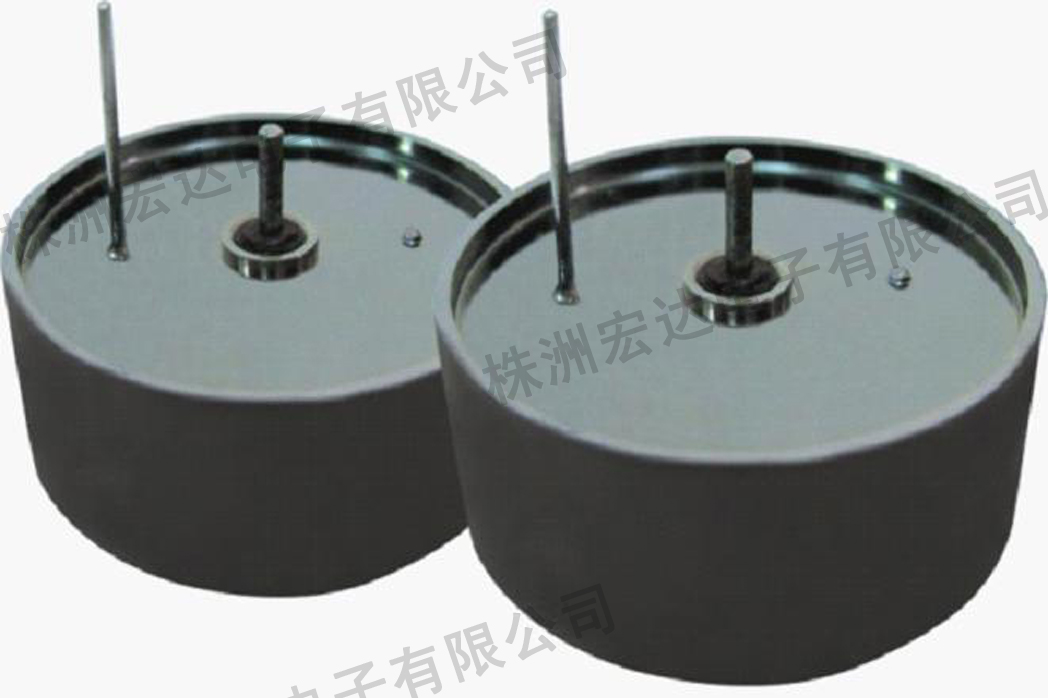

激光焊接、全钽外壳封装、体积小、容量大
Laser Welding, All-tantalum encapsulation, Small in Size, high Capacitance;
本产品容量密度大，能量密度为常规的钽电容器的数倍，抗震动能力强，适用于高温环境下的石油深井测量及石油钻井等高温电子设备的直流或脉动电路。
This series of capacitor is large in the density of capacitance脉 the capacitance is several times of the common series of capacitors, strong in the ability of anti-vibration. Applying in Petroleum deep-well’s measurement &drilling such High-Temperature resistance Electrical Equipments with DC& Impulse Circuit for Military and Civil use;
执行标准：QJ/PWV322-2010
Operative Standard: QJ/PWV322-2010
订货格式：CA386-50V100μF -K：100只
Ordering Information: CA386-50V100μF -K：100 pcs
主要技术性能Technical Performances:
使用温度范围：-55℃～+200℃（>85℃施加类别电压使用）
Operating Temperature Range:-55℃～+200℃(when ＞85℃， with rated voltage derating)
储存环境温度：-62℃～+130℃
torage Temperature Range: -62℃～+130℃
容量允许偏差：K级：±10％ M级：±20％
Capacitance Tolerance: K: ±10％；M: ±20％
漏电流、损耗等电性能参数：见下表2
Electrical Characteristics: See table2;
外形结构、安装尺寸：见图和表1
Dimensions & Max Weight: See figure and table1;
表1 外壳代号、最大重量和外形尺寸
Table1 Case Code, Dimensions and Max Weight;
|
外壳代号
Case Code,
|
最大重量(g)
Max Weight
|
直径×高度(mm)
Diameter ×Height(mm)
|
|
A
|
28
|
Φ16×16
|
|
B
|
150
|
