CC41 Series

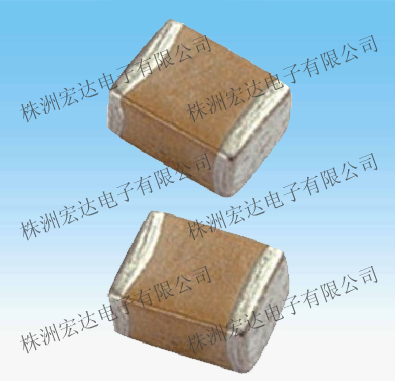

单芯无包封多层瓷介电容器
Single-Core，No Encapsulation, Multi-Layer Ceramic Capacitor
特征与应用C haracteristics& Applicaction：
·方形，无外包封层，适合于表面贴装；
Square Shape，No Encapsulation, Suit for Surface Mount Circuit;
·介质为I类瓷介，频率特性好，电容量稳定性高；
Class I Ceramic Dielectric，Excellent at frequency characteristics, Stable in Capacitor Capacitance;
·产品100%进行温度冲击和高温电负荷筛选；
Have experienced 100% Thermal Shock & High-Temperature Electron-Load Screening;
·适用于各类电子设备中的谐振回路、耦合电路及要求低损耗、容值稳定性高和绝缘电阻高的电路中；
Applying in kinds of Resonance Circuit, Coupling Circuit, and many circuits which needs Low ESR, High reliable capacitance, High Insulation resistance;
·PH、RH、SH、TH、SL、UJ温度系数为负值，适合用于温度补偿型电路。
The Temperature Coefficient Volume of PH、RH、SH、TH、SL、UJ Series products are negative, which are suit for Temperature Compensation Series’ Circuit;
主要性能指标及执行标准
Main Characteristics
CG、CH使用温度范围：-55℃～125℃；
CG、CH Operating Temperature Range: -55℃～125℃；
PH、RH、SH、TH、SL、UJ使用温度范围：-55℃～85℃；
PH、RH、SH、TH、SL、UJ Operating Temperature Range: -55℃～85℃；
温度系数：见下表
Temperature Coefficient: See Tables Below;
电容量漂移：(-0.2%～+0.2%)或（-0.05pF～+0.05 pF）取较大者；
Capacitance Variability: (-0.2%～+0.2%) or（-0.05pF～+0.05 pF）Choose the greater one
损耗角正切值：DF≤0.15%；
DF（tgδ）：DF≤0.15%；
绝缘电阻：在25℃，不低于100000MΩ或1000MΩ·μF取较小者；
Insulation Resistance: at 25℃, not lower than 100000MΩ或1000MΩ·μF.( choose the smaller one)
介质耐压：2.5UR；
Dielectric Withstanding Voltage：2.5UR
订货示例
Ordering Information
|
S-
|
CC41
|
0805
|
CG
|
101
|
J
|
500
|
N
|
B
|
|
质量等级
Quality Grade
|
型号
Series
|
