CC40 Series

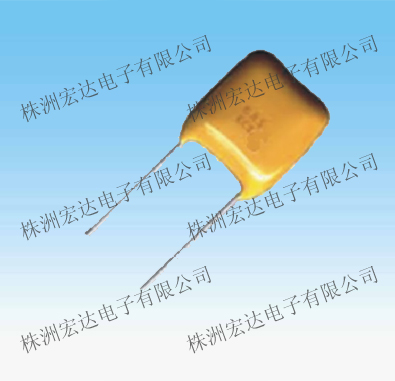

单芯径向引线多层瓷介电容器
Single-Core RadialMulti-Layer Ceramic Capacitor
特征与应用C    characteristics & Applications:
·方形,圆形引线径向引出,环氧树脂涂覆包封,适合于印刷线路板插装;
Square Shape,Radial lead, Epoxy-Coated,Suit for thru- hole assembly;
·介质为Ⅱ类瓷,介电常数高,电容器容量体积比大;
Class II Ceramic Dielectric, Large Capacitance Volume;
·产品100%进行温度冲击和高温电负荷筛选;
·适用于各类电子设备中的旁路、滤波、低频耦合电路及对损耗和电容量稳定性要求不高的电路中;
Applying in kinds of Bypass Channel Circuit, Filter Circuit, Low-frequency Coupling Circuit, and many circuits which has no special demand in ESR & Capacitance;

主要性能指标及执行标准
Main Characteristics:
使用温度范围:BX、BA、BC:-55℃~125℃, BR:-55℃~85℃;
Operating Temperature Range: BX、BA、BC:-55℃~125℃, BR:-55℃~85℃;
温度特性 : BX、BA、BR :±15% 、BC:±20%;
Temperature Coefficient: BX、BA、BR :±15% 、BC:±20%;
老化特性:每十进制小时最大为3%;
Aging Characteristics: 3% at most per hour through Decimal System;
损耗角正切值:见下表;
DF(tgδ): See tables below;
绝缘电阻:在25℃,不低于10000MΩ或100MΩ·μF取较小者;
Insulation Resistance: at 25℃, not lower than 100000MΩ或1000MΩ·μF.( choose the smaller one)
介质耐压:2.5UR
Dielectric Withstanding Voltage:2.5UR


订货示例
Ordering Information

S-
CT40
SR20
BX
104
K
500
A
B
质量等级Quality Grade
型号Series
外形尺寸
Dimensions
